LUBIN 35MM MOTION PICTURE CAMERA

    Lubin Manufacturing Company, Philadelphia, Pennsylvania       1915 - 1916









Regarded as the first movie mogul and one of the pioneers of the early film industry, Siegmund "Pop" Lubin was not only producing films for mass distribution, but would ultimately manufacture the cameras and kinetoscopes used to make and project the finished product. Although Lubin began distributing films for Thomas Edison in 1896, and producing silent films by 1897, Lubin Manufacturing Company would not be established until 1902.





          Siegmund "Pop" Lubin circa 1913              Image source:   Exibitors' Times May–Sep 1913, courtesy Wikipedia



                https://upload.wikimedia.org/wikipedia/commons/4/44/Lubin_Logo_1914.png

                  Lubin Manufacturing's "Liberty Bell" trademark

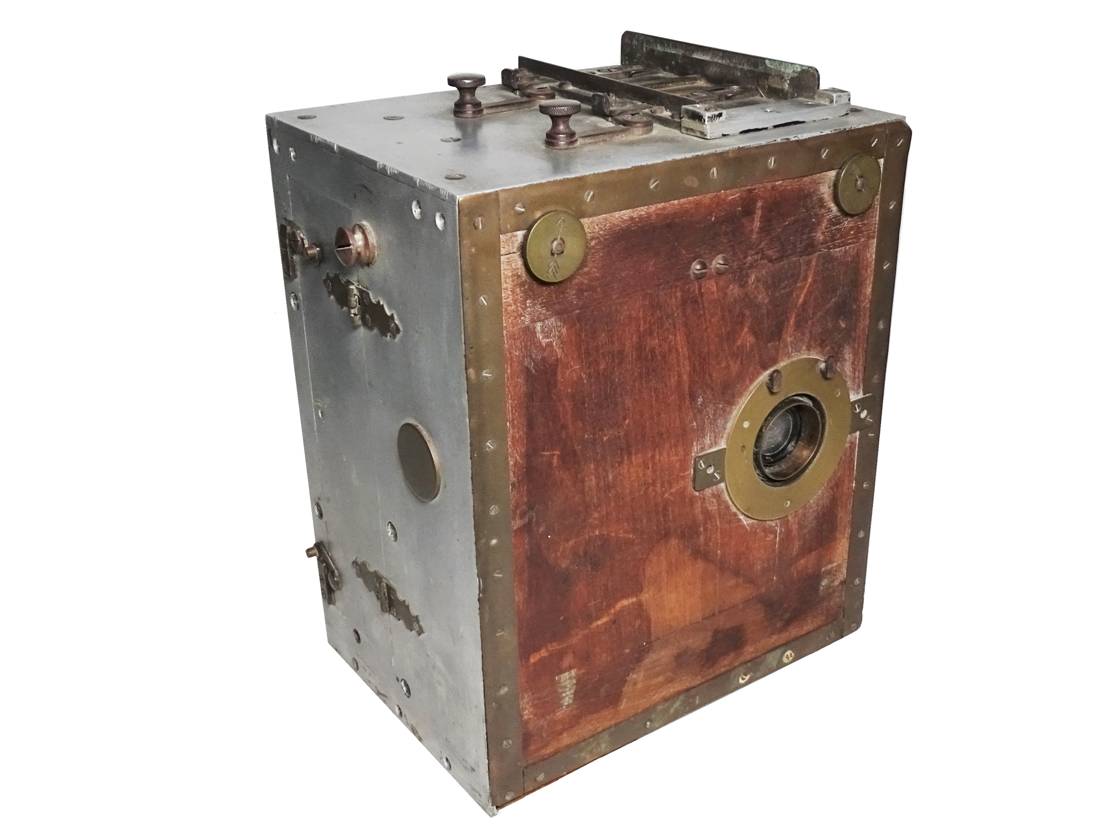

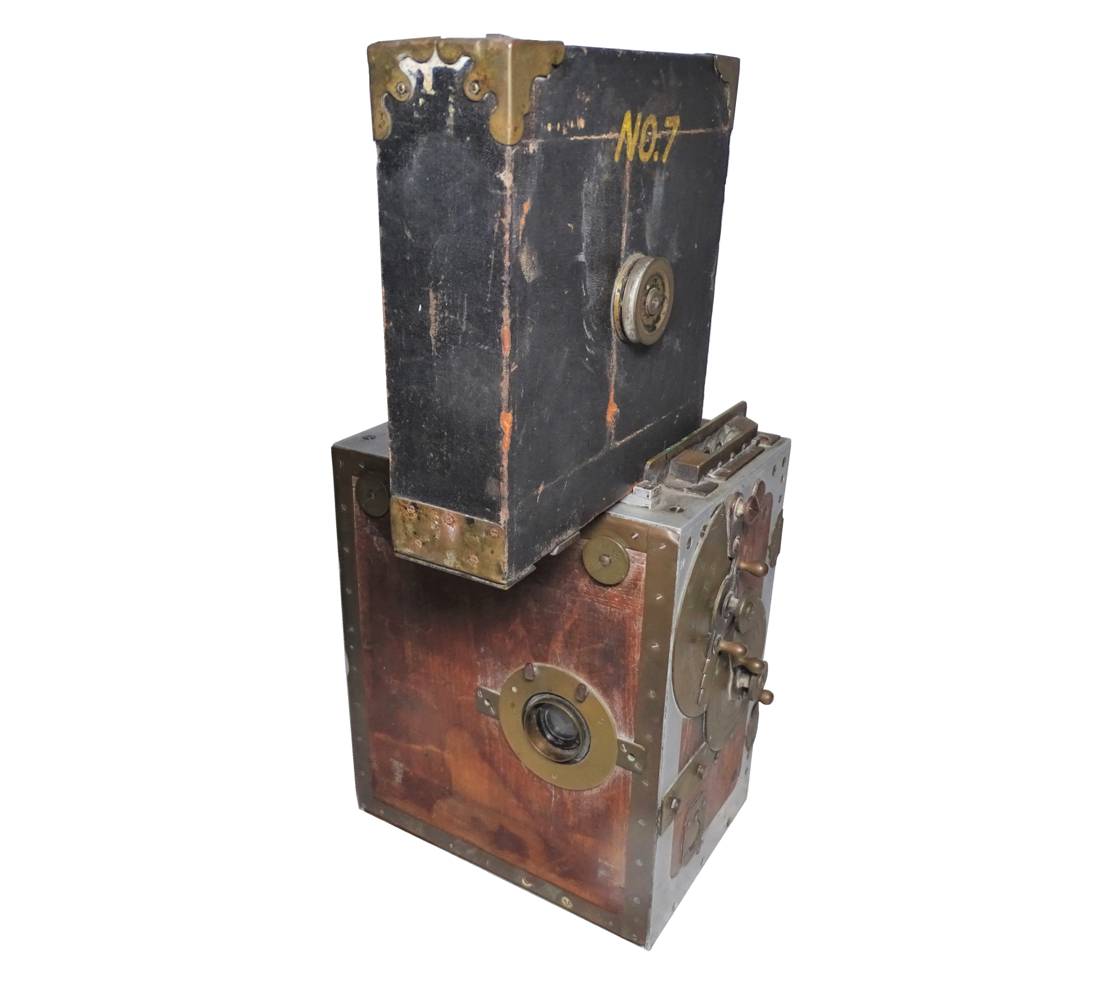

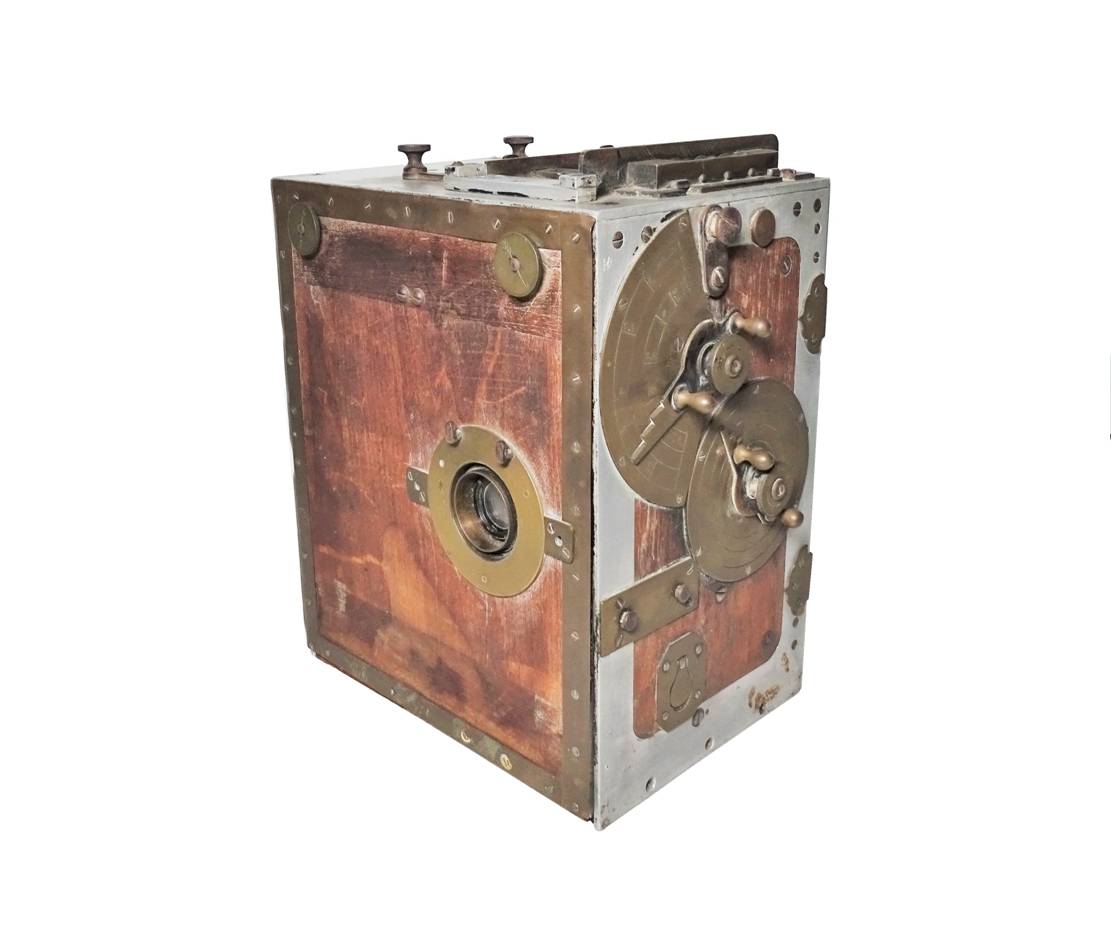

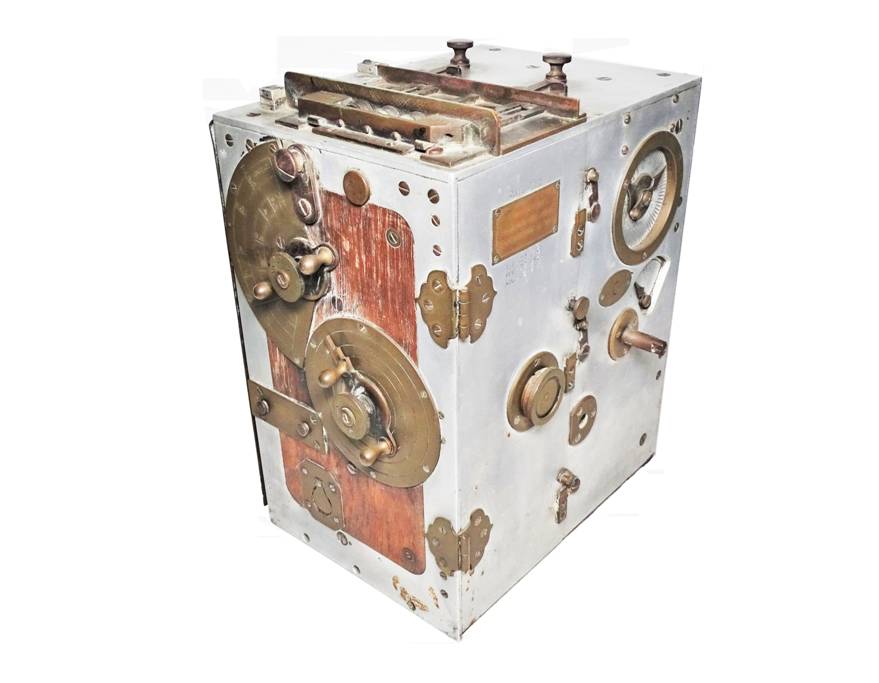

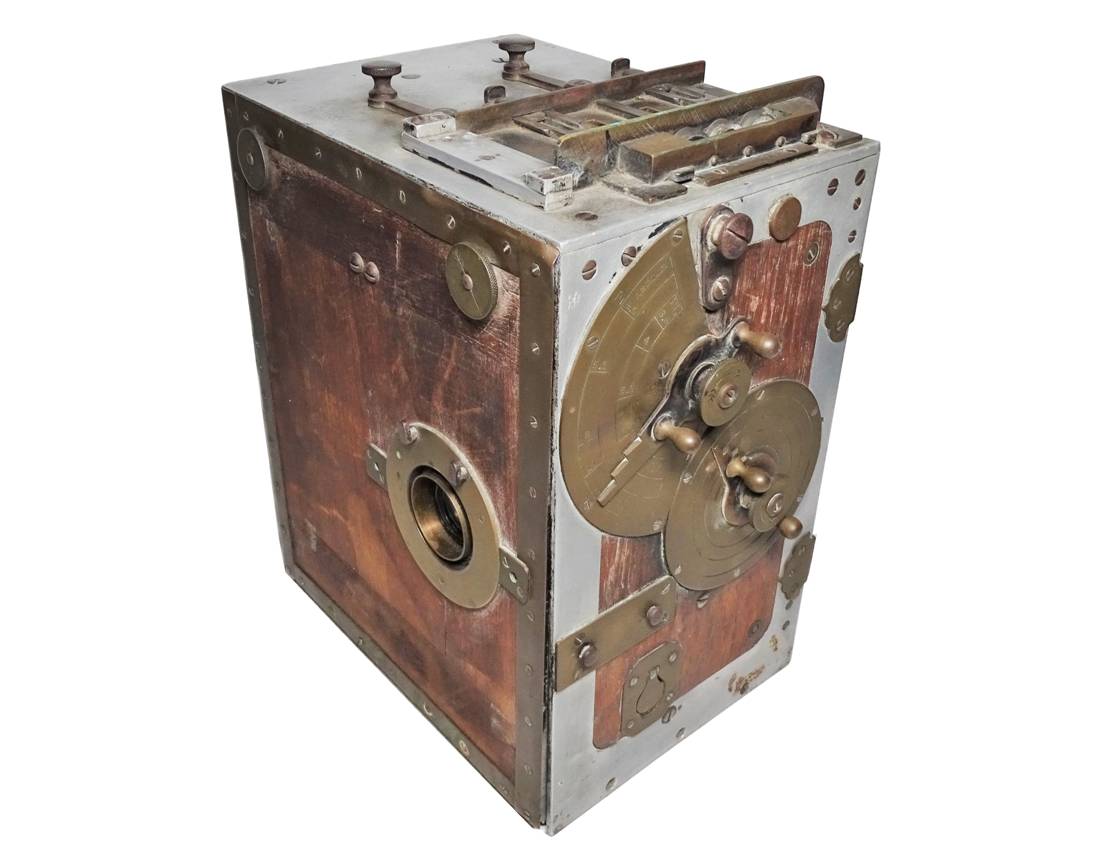

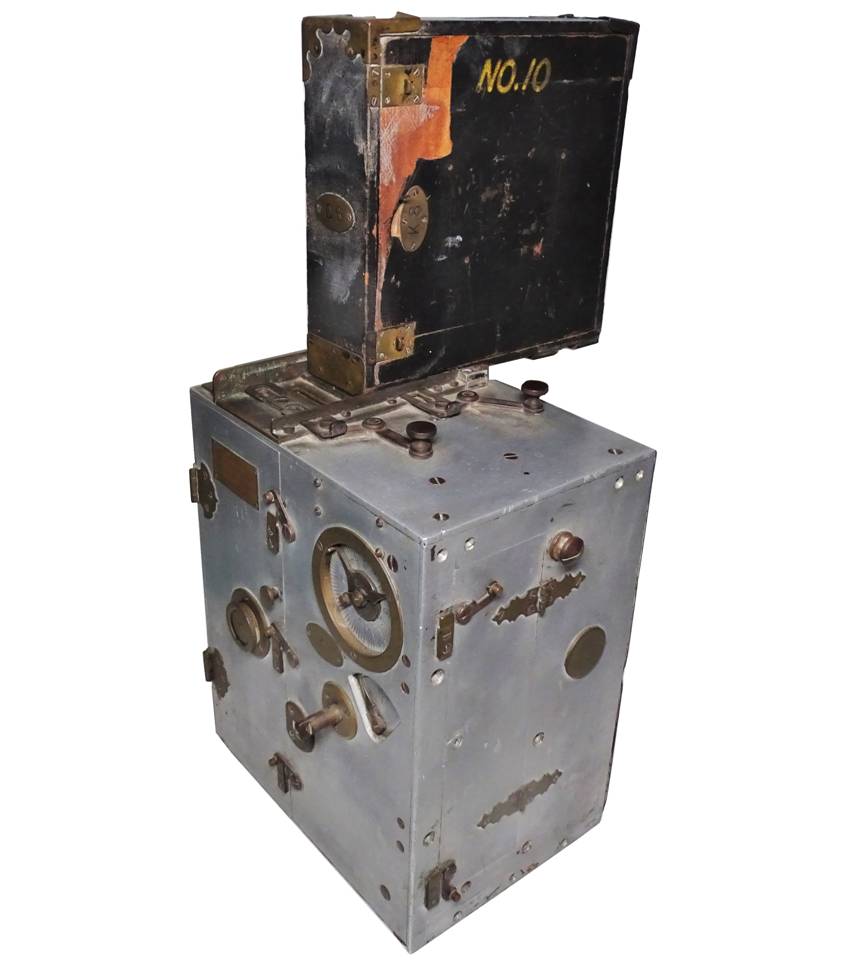

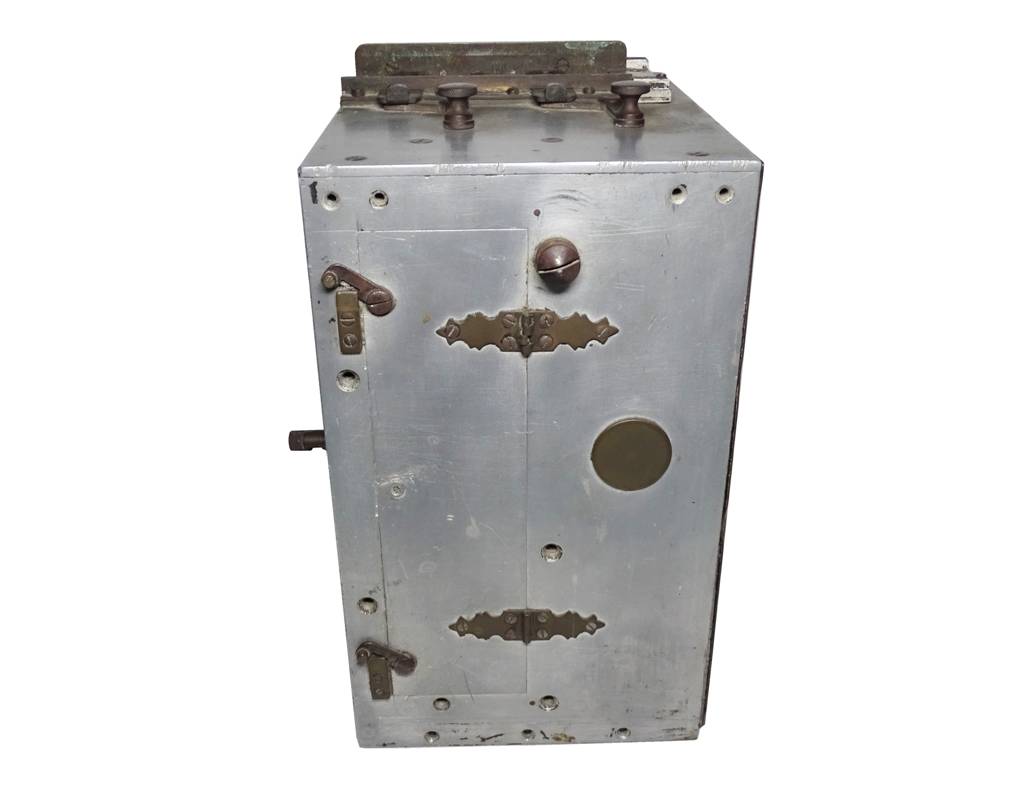

Having a last patent date of August 31,1915, this Lubin 35mm Motion Picture Camera would have been manufactured sometime between that date and September 1, 1916, when the company closed its doors after having filed bankruptcy. Its design was radically different from one of Lubin's earliest cameras from 1903, which can be seen by following this link to The Malkames Collection: http://www.malkamescameracollection.com/index#/new-page



At least three models of Lubin's cameras have been seen. The earlier wooden model (Malkames Collection), the model featured here, and the one seen below which may possibly be the last version of the camera produced. Note that the massive brass aperture and focus levers are now gone from the camera's left side, replaced with a smaller focus knob and an aperture scale and lever located on the frront panel to adjust the aperture:





                                       Image source unknown





                                       Image source unknown

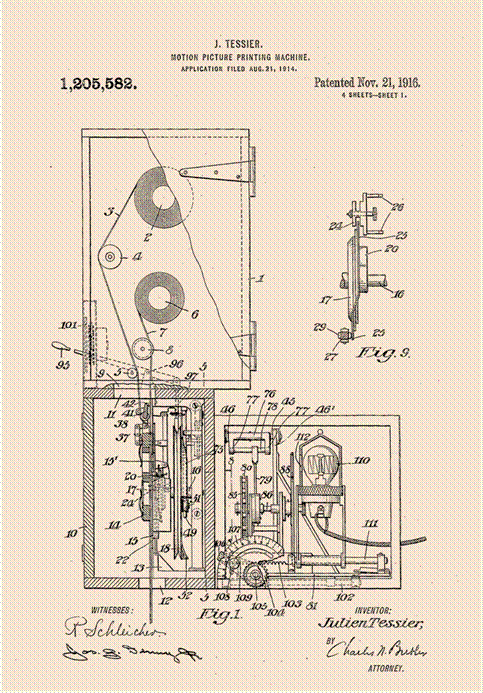

The Lubin could also be used as a printer, via an attachment to the camera along with a light source. The design concept was covered under Patent No. 1,205,582, and can be seen on the example found in the George Eastman Museum:

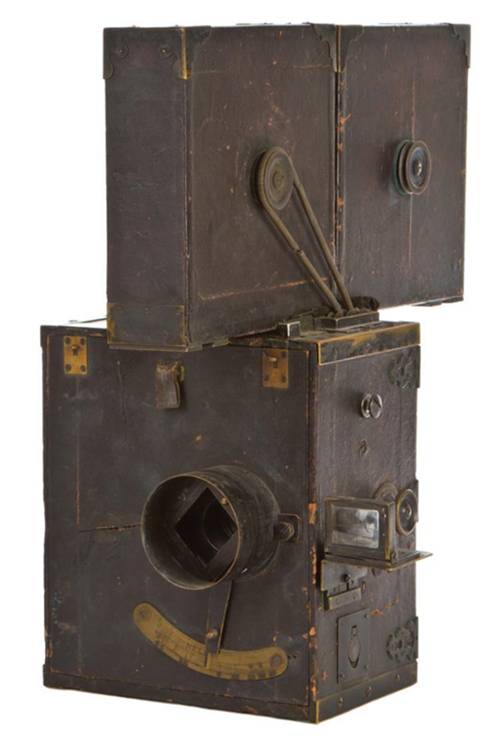

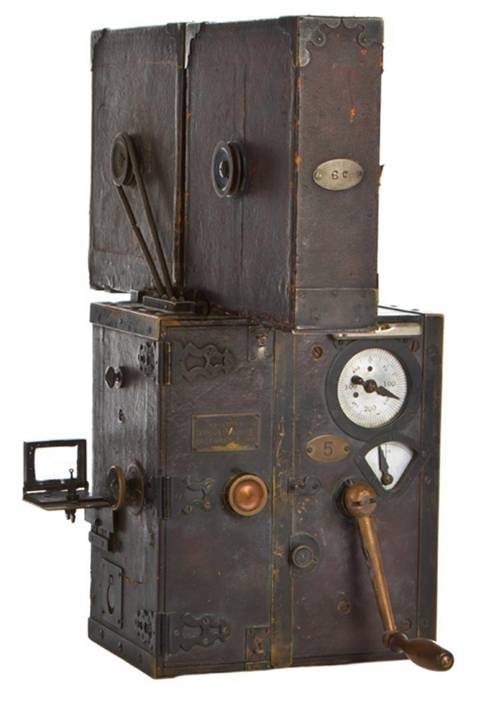

 Lubin Camera with Printer Attachment - George Eastman Museum

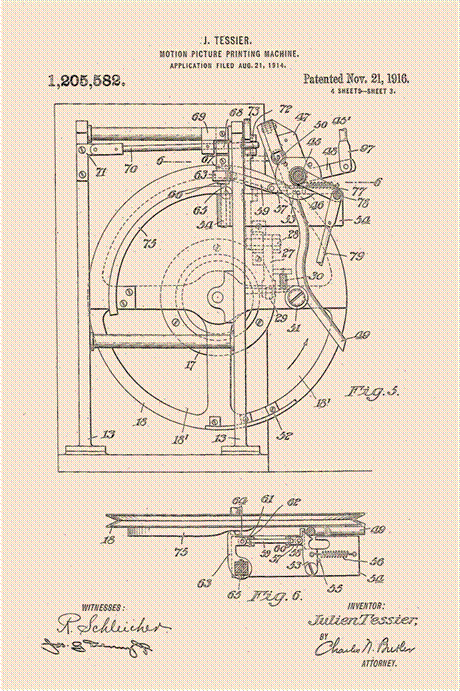

It's interesting to note that the George Eastman Museum's example shows the printer attachment mounted at the front, as opposed to the patent drawing showing it atop the camera; the light source was attached to the back of the camera as reflected in the drawing below:





                    Image source: Google Patents                                        Image source: Google Patents

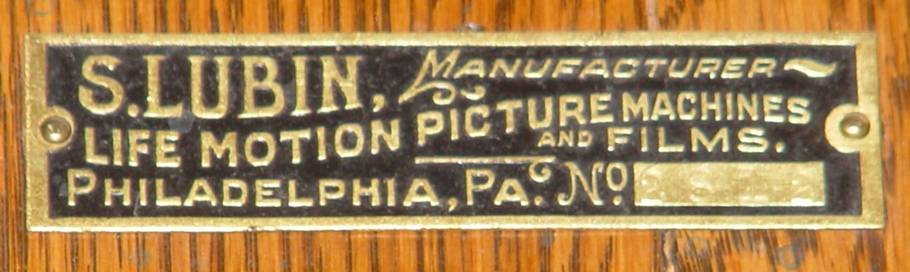

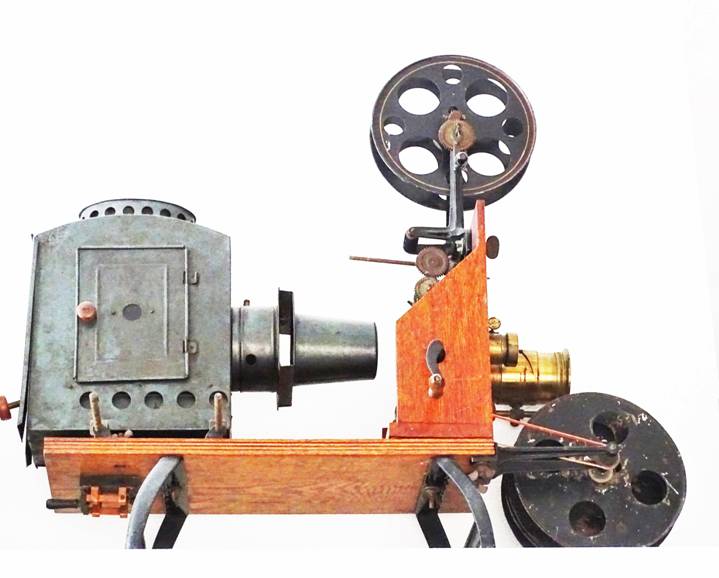

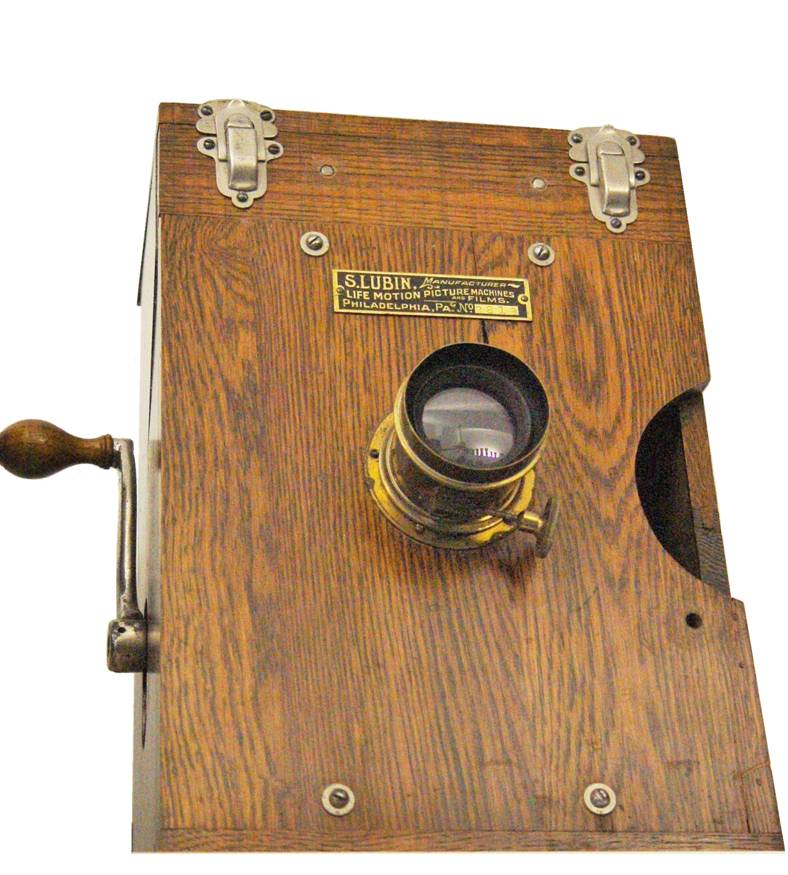

Lubin manufactured projectors under the "Life Motion Picture Machines and Films" label, such as the Lubin "Marvel" Cineograph seen below:









                     https://antiquephotographica.info/S.%20Lubin%20Projection%20Lens%20for%20Marvel%20Cineograph%20Wood%20Cased%20Model%201903-1908%20Web%20Page%209-26-2019_files/image008.jpg

                         Lubin "Marvel" Cineograph wood-cased model from about 1903-1908

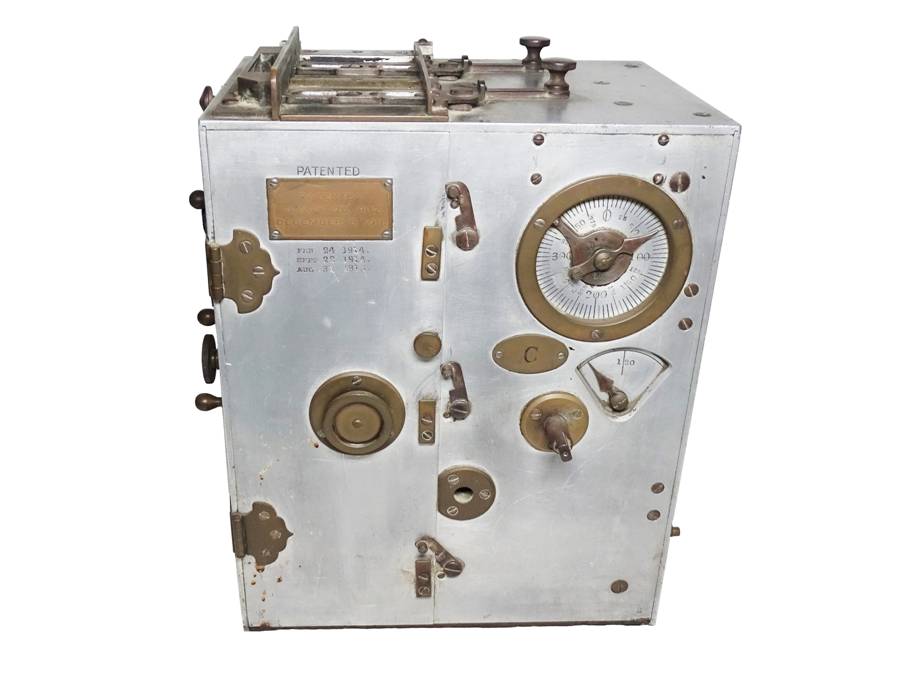

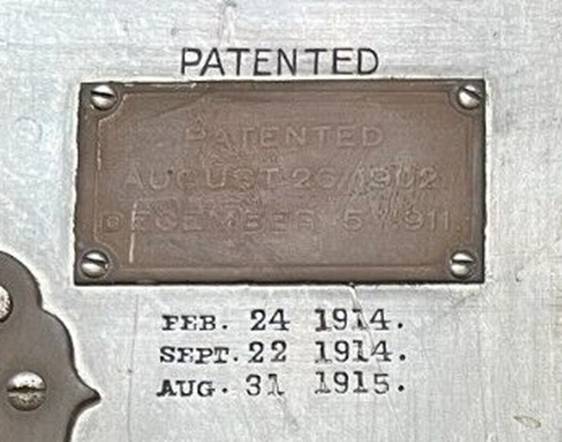

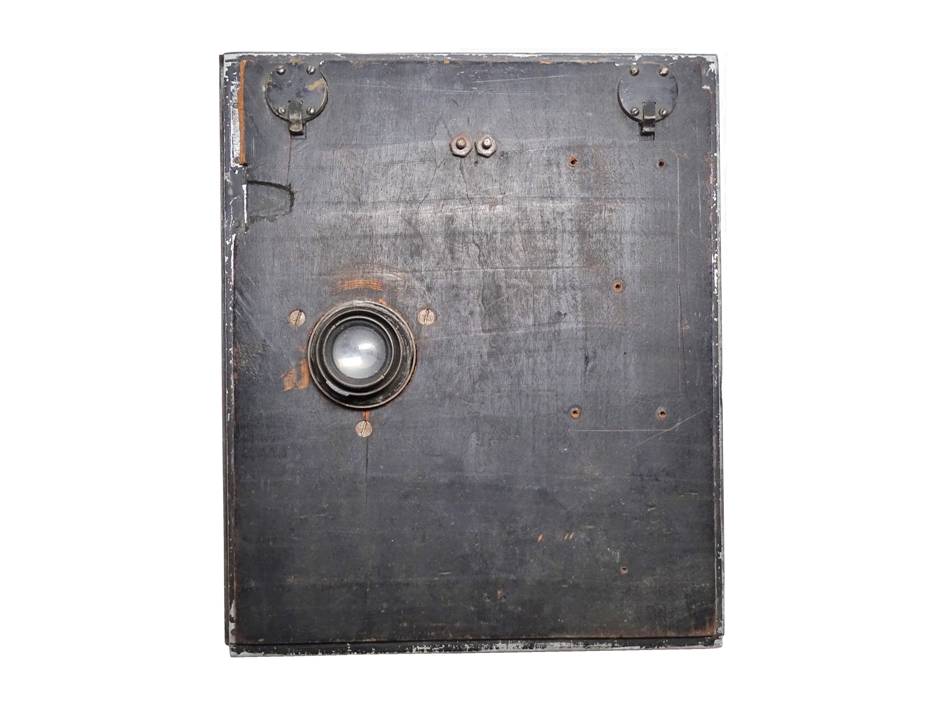

Although no manufacturer's tag or other maker's mark is found on the camera or film magazine, five patent dates are found on the camera's rear access door. The first two are found on the brass tag affixed, the last three being stamped into the film gate access door:









August 26, 1902 - Patent No. 707,934 granted to Woodville Latham for a Projecting Kinetoscope, assigned to the E. & H.T. Anthony & Company, New York (The Latham Loop patent)

December 5, 1911 - Patent No. RE13329 (reissue of earlier Patent No. 589,168 granted on August 31, 1897 to Thomas Edison for a Kinetographic Camera) granted to Thomas Edison for a Kinetoscope, assigned to the Motion Picture Patents Company of New Jersey



February 24, 1914 - Patent No. 1,087,996 granted to Julien Tessier for a Motion Picture Mechanism, assigned to Lubin Manufacturing Company

September 22, 1914 - Patent No. 1,111,506 granted to Julien Tessier for a Film Magazine, assigned to Lubin Manufacturing Company

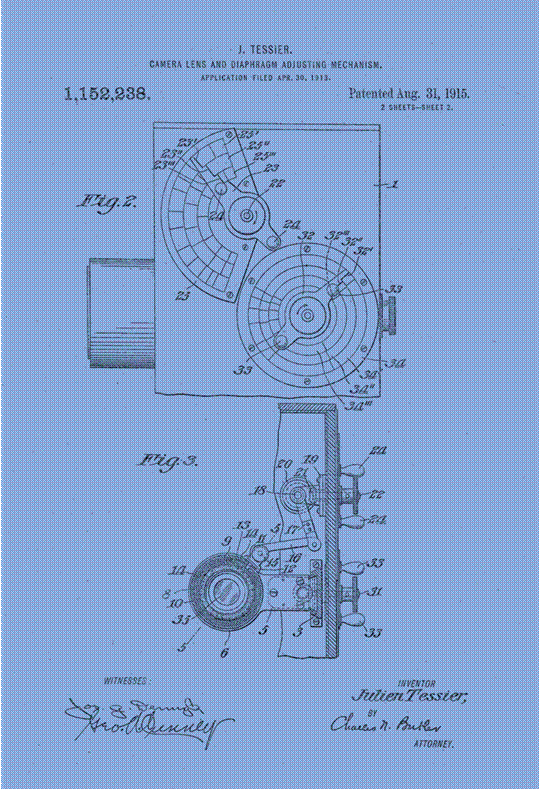

August 31, 1915 - Patent No. 1,152,238 granted to Julien Tessier for a Camera Lens and Diaphragm Adjusting Mechanism, assigned to Lubin Manufacturing Company



Additionally, Tessier was granted five other patents that were also assigned to Lubin Manufacturing Company:

December 25, 1913 - Patent No. 1,082,053 Tripod Head

January 26, 1915 - Patent No. 1,126,589 Film-Winding Mechanism

November 2, 1915 - Patent No. 1,159,130 Motion Picture Film

November 21, 1916 - Patent No. 1,205,582  Motion Picture Printing Machine

November 21, 1916 - Patent No. 1,205,583 Film Cleaning and Polishing Mechanism





                                Image source: Google Patents



The first two patents cited on the brass tag (for the Latham Loop and Edison's Kinetographic camera), probably acknowledged the camera's licensing under the Motion Picture Patents Company (the Edison Trust), as the camera incorporated elements of these patents controlled by the Edison Trust. At the time this particular camera was built, the Trust was still in effect, with Siegmund Lubin having become a member after resisting joining the MPPC in its earlier years and having tired of a number of legal challenges. By October 1, 1915, the Trust was deemed illegal, and despite their subsequent appeal, the MPPC was finally terminated in 1918.

The last three patents stamped on the camera, specific to the Lubin 35mm's design, were granted to Julien Tessier and assigned to the Lubin Manufacturing Company of Philadelphia, Pennsylvania. Tessier, a French engineer, had previously worked for Pathe before coming to Lubin. These patents, along with a few photos of other known Lubin 35mm cameras, support the camera's identification. In 1921, Tessier began an association with Eastman Kodak, lasting at least seven years. He was granted at least fourteen additional patents, all assigned to Eastman Kodak, a number of them related to various design aspects for Eastman's first 16mm motion picture camera, the Cine-Kodak Model A:



https://antiquephotographica.info/EASTMAN%20KODAK%20-%20THE%20CINE-KODAK%20WEB%20PAGE%206-12-2020_files/image002.jpg

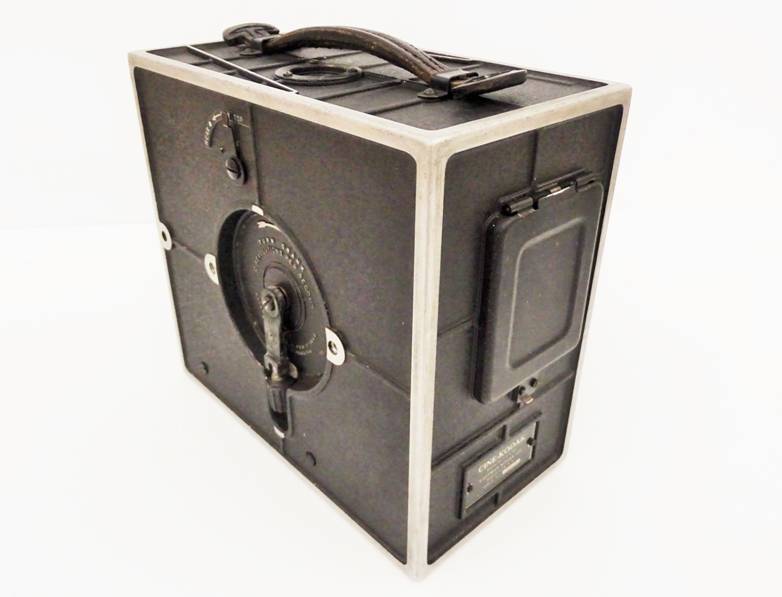

                                                             Cine-Kodak Model A



A great photo of Julien Tessier with a Lubin 35mm, alongside a Cine-Kodak can be seen at the Vintage Cameras website:

Julien Tessier



Some of the Lubin's features, such as the film gate's design, through the lens viewing/focusing, top-mounted wooden film magazines and an internally mounted lens to name a few, are very similar to the Pathe Professional 35mm of the same period. With the Pathe having been the industry standard for a number of years prior, Lubin probably "borrowed" these attributes from the Pathe, further distinguishing his camera with other patented improvements.

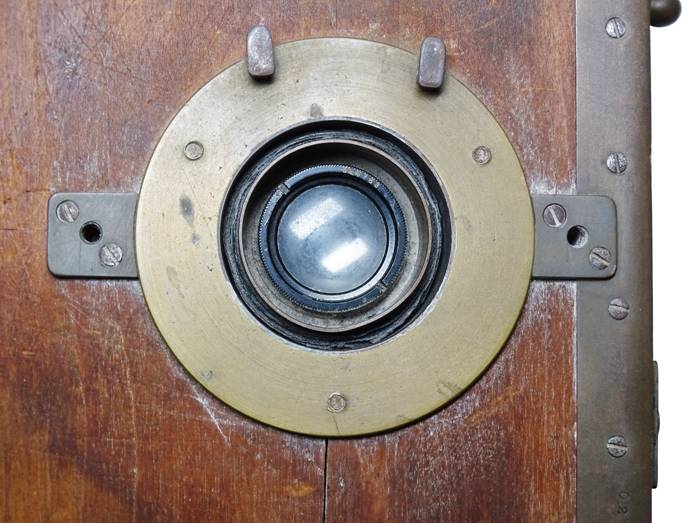

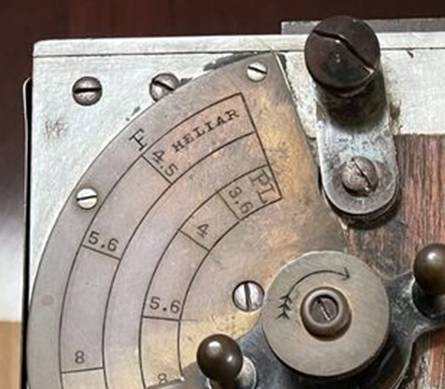

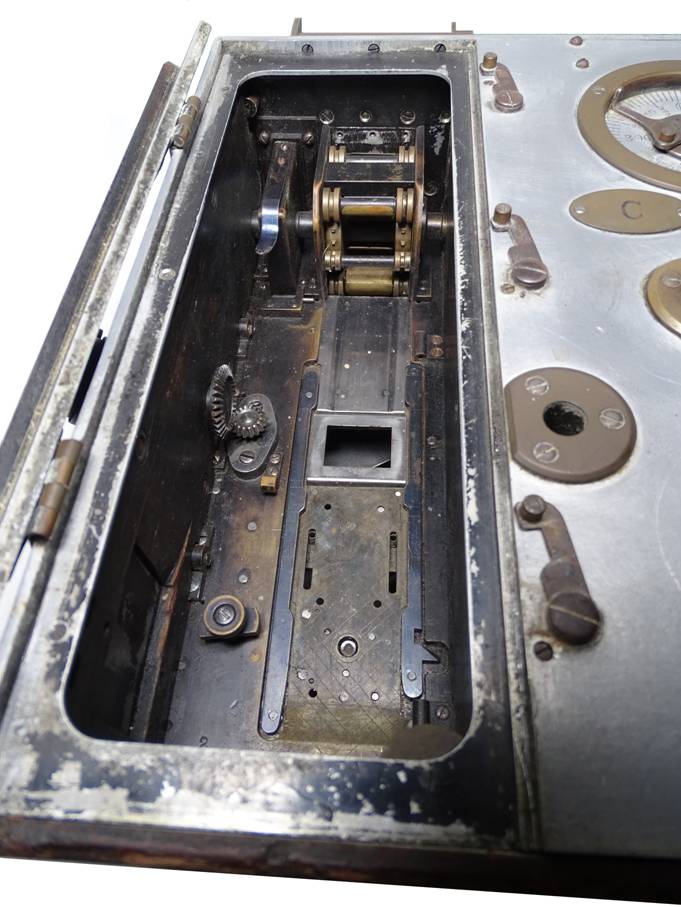

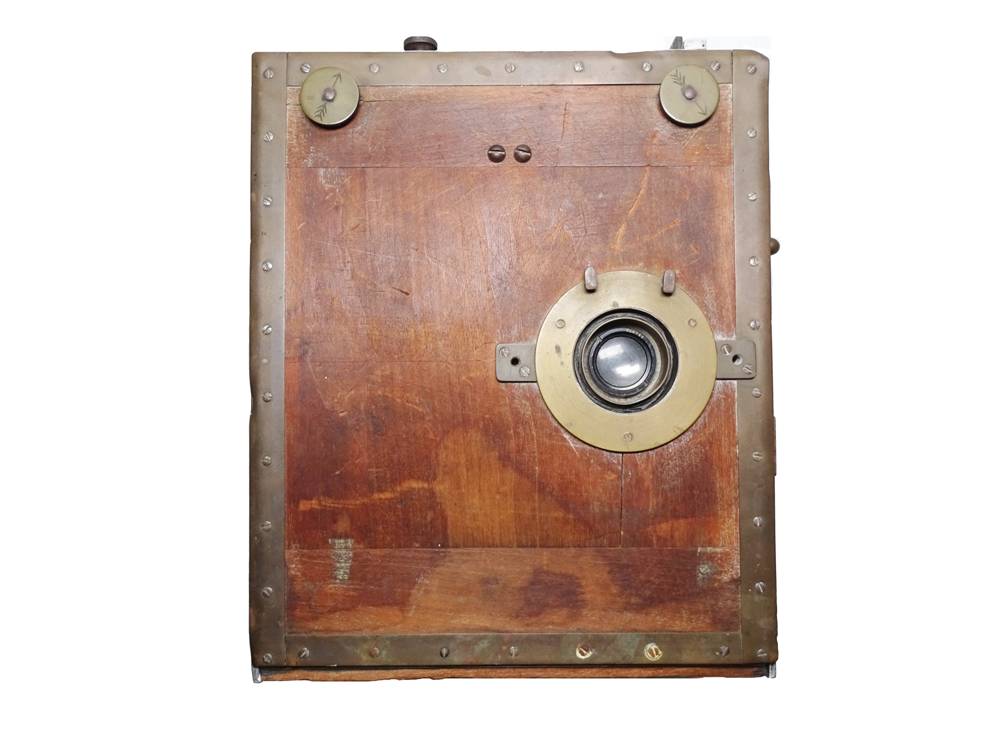

This example is incomplete, missing its film gate, crank handle, one film magazine, drive springs and some other internal linkage. It was acquired with a Goerz Berlin Kino Hypar F1:3.3 55MM lens. Although the camera's aperture dial is marked "Heliar" suggesting the camera was originally equipped with that lens, the Goerz Kino Hypar would have also been period correct. At least one other example has been seen with a Carl Zeiss Tessar:

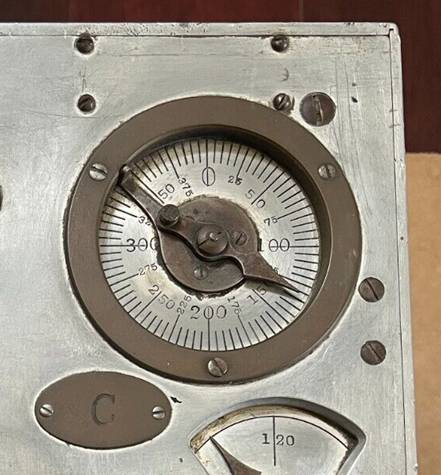

The camera's magazines held 400 feet of film, as reflected on the footage counter:

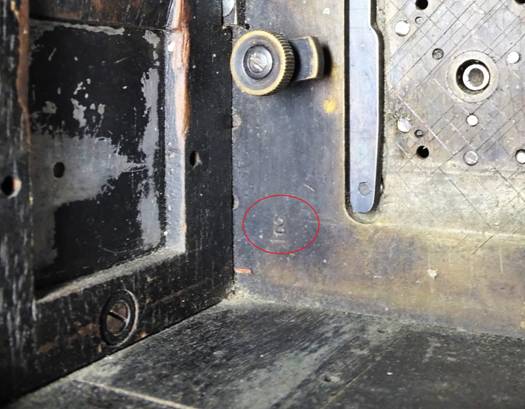

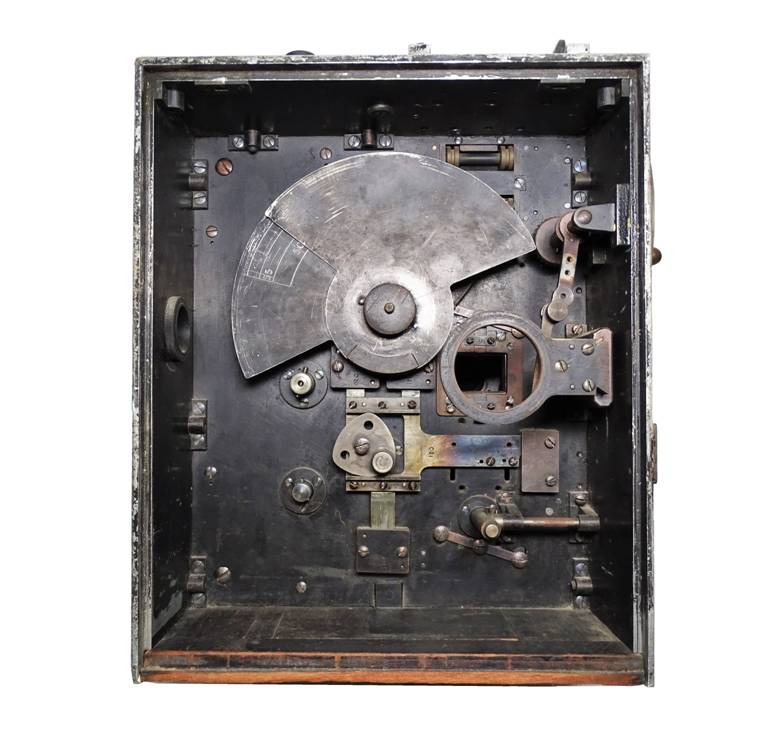

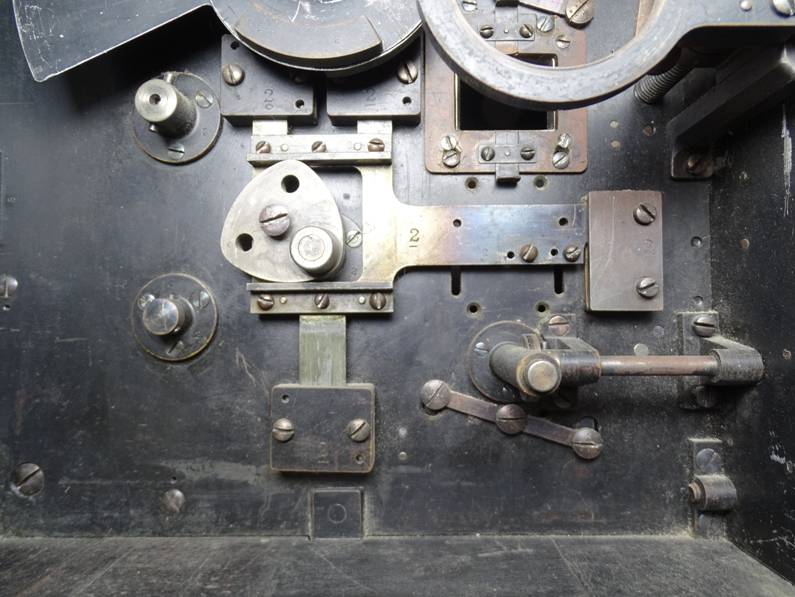

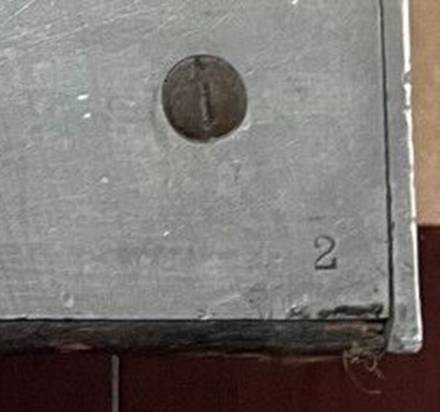

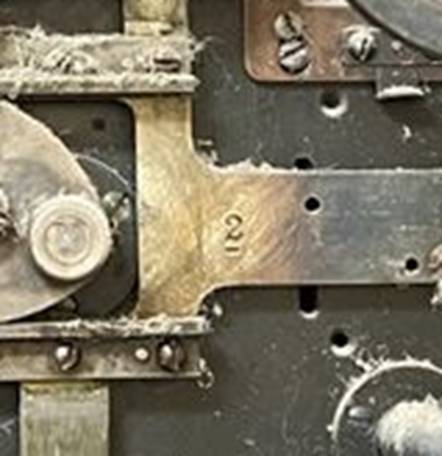

Other than the numbers "2" and "02" which appear on the bottom right edge of the back panel, on the shutter mechanism assembly, in the film gate chamber and on three of the brass strips that frame out the front panel, there are no other numbers or markings. This number is either a serial number, an assembly number (usually found on multiple components that are fitted to a specific camera) or possibly it served as both the serial and assembly number:

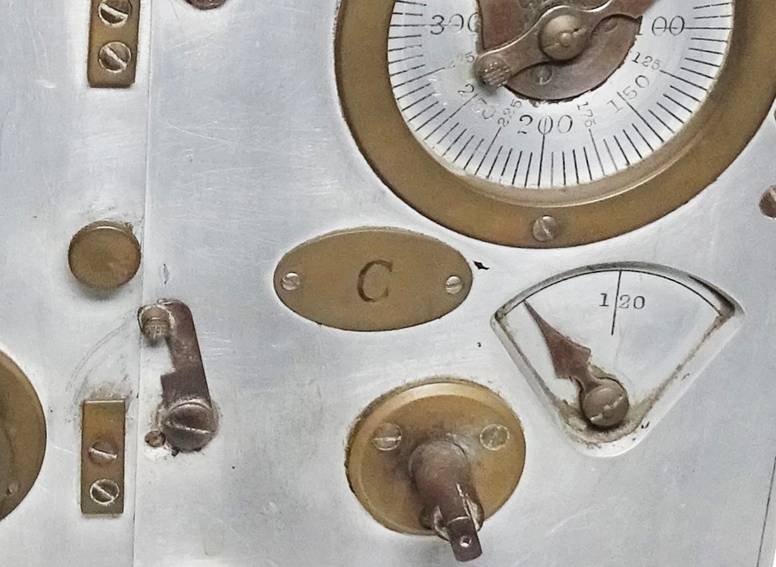

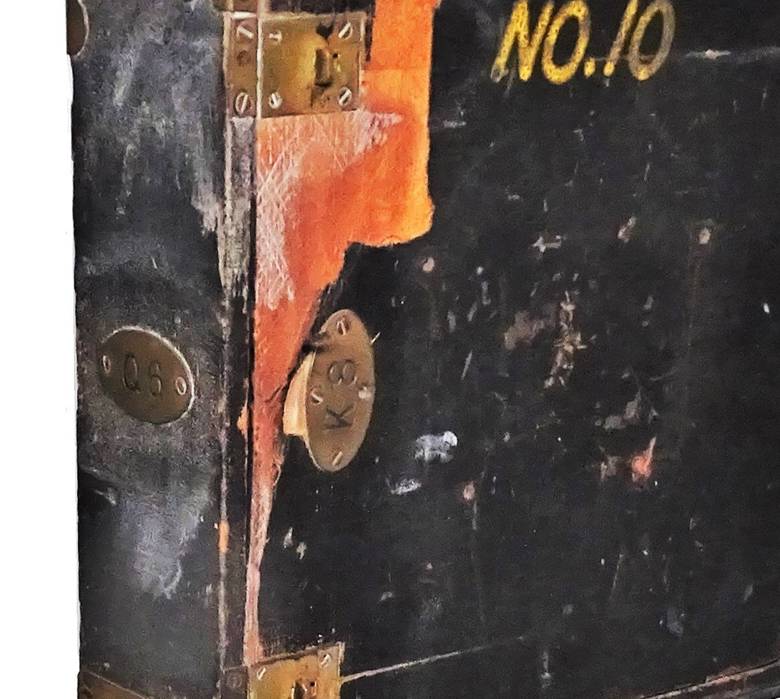

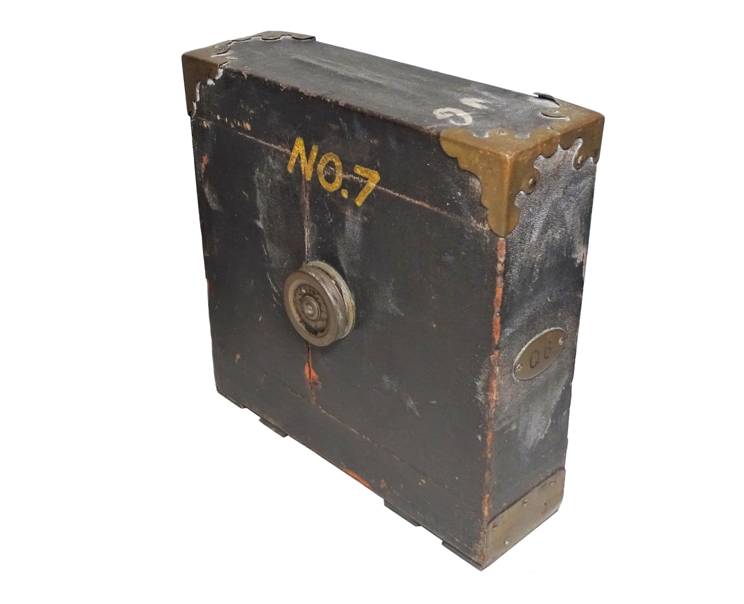

The significance of the oval tags with either alpha or alpha numeric characters on the camera and the film magazines, is undetermined. Possibly, they referenced a particular production unit, or they were used to track which cameras and magazines were used on a particular shoot:

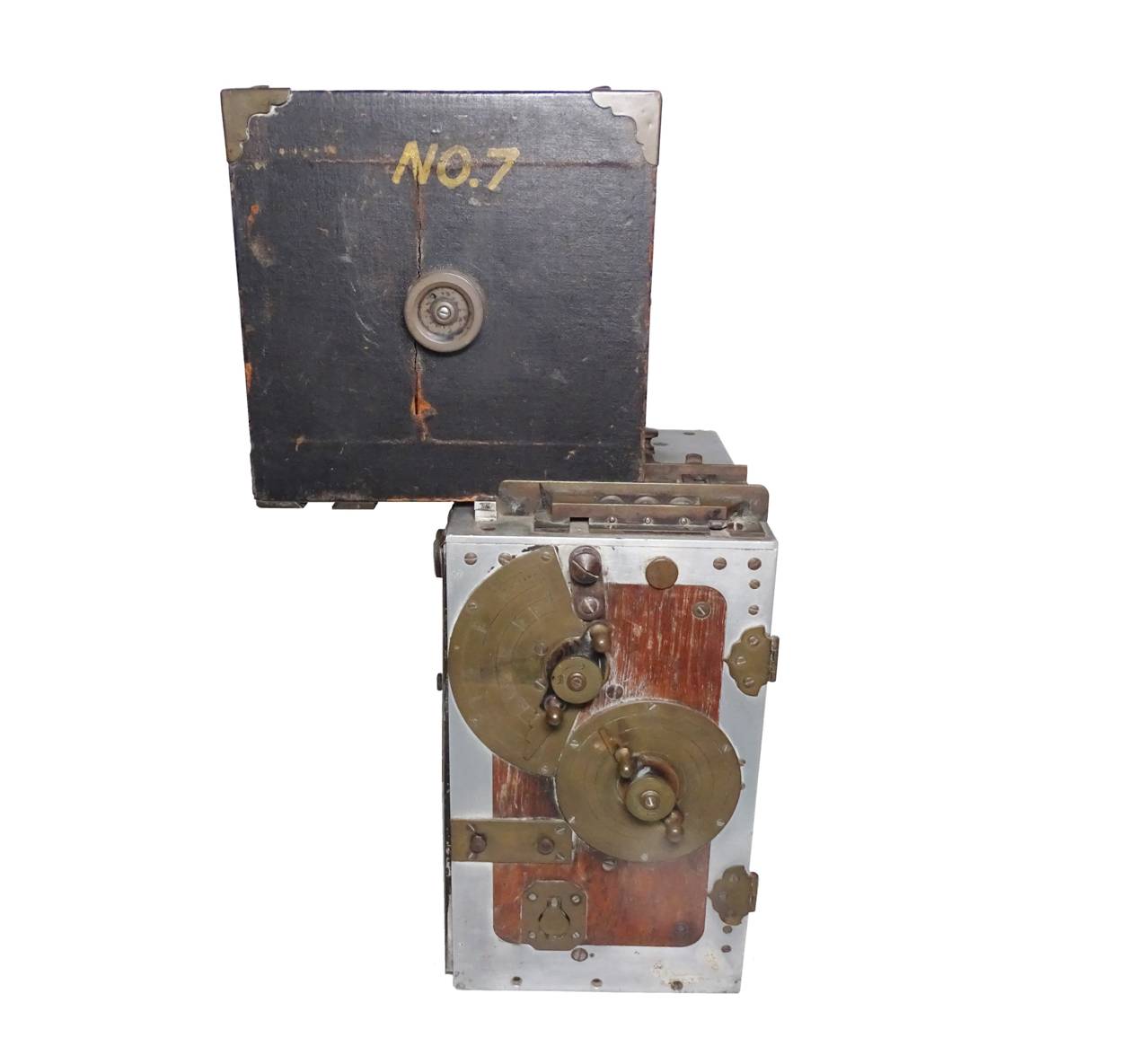

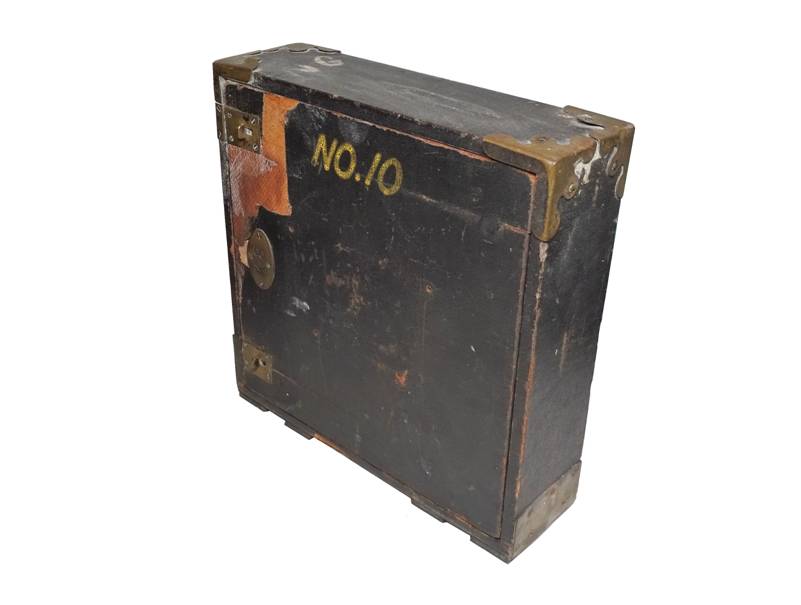

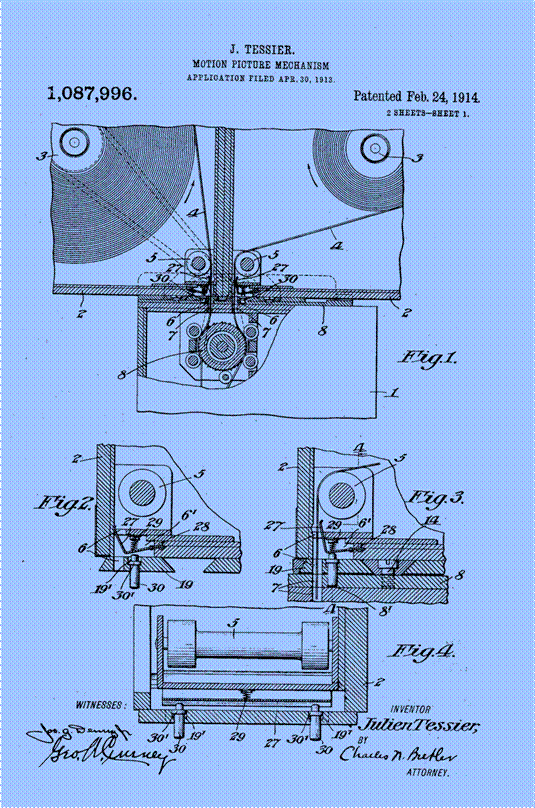

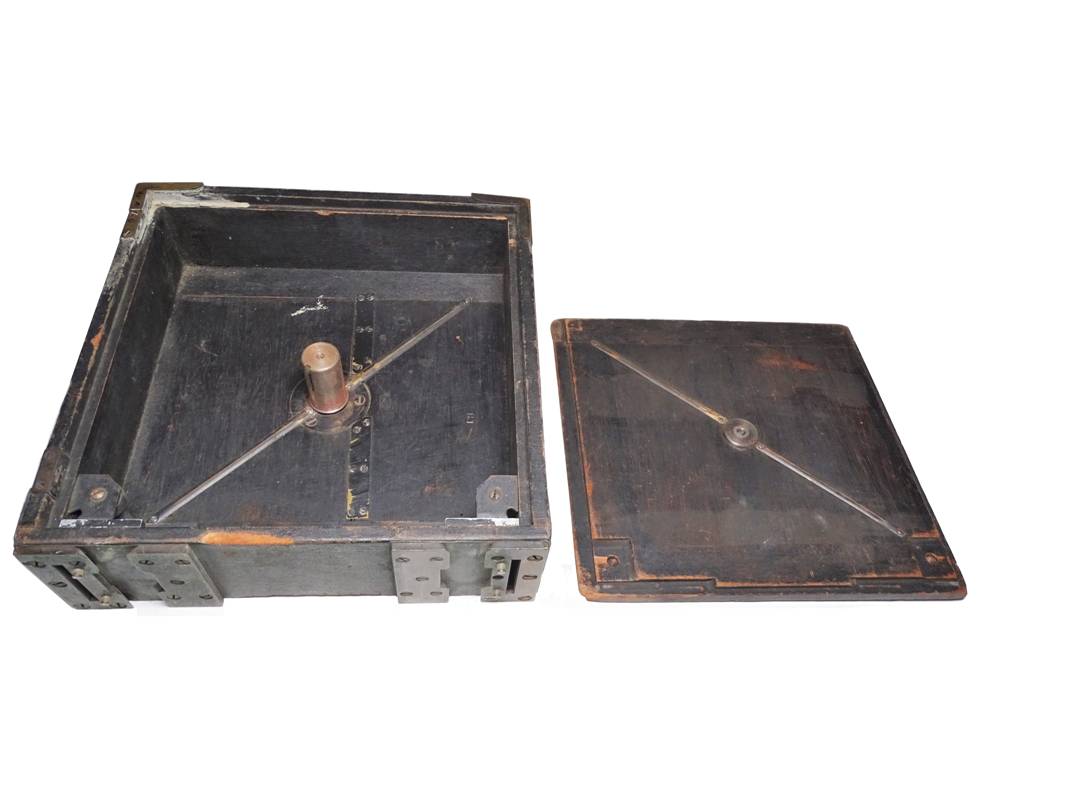

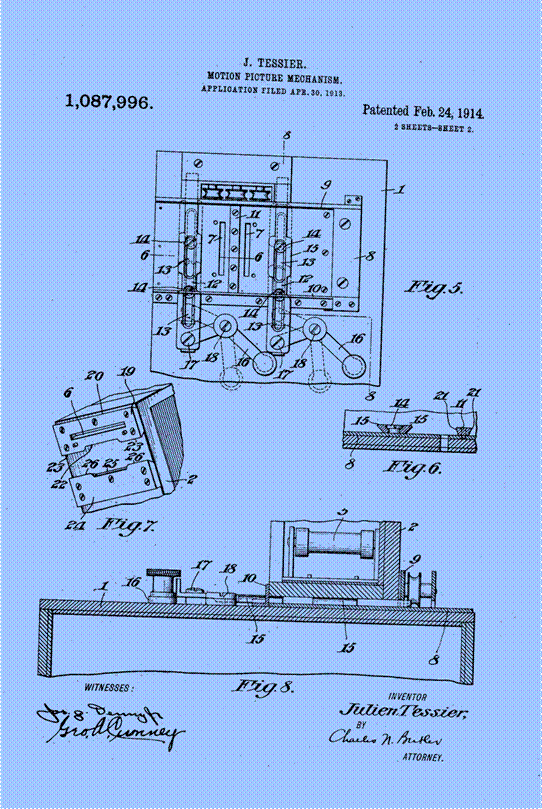

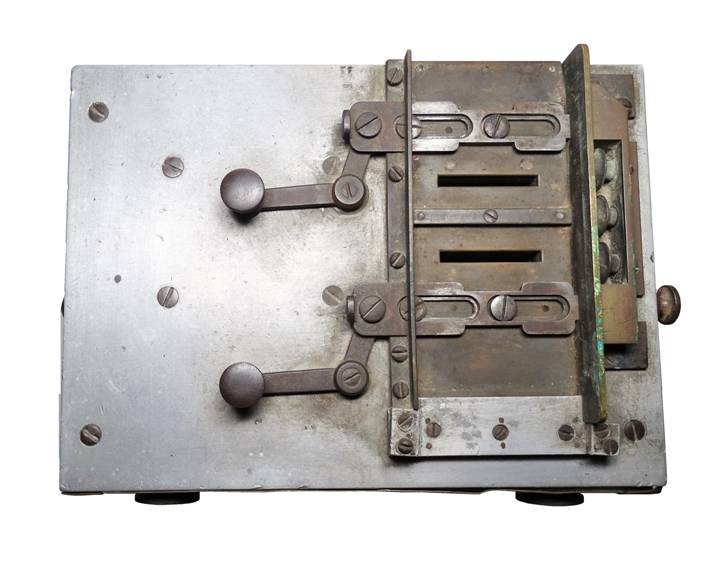

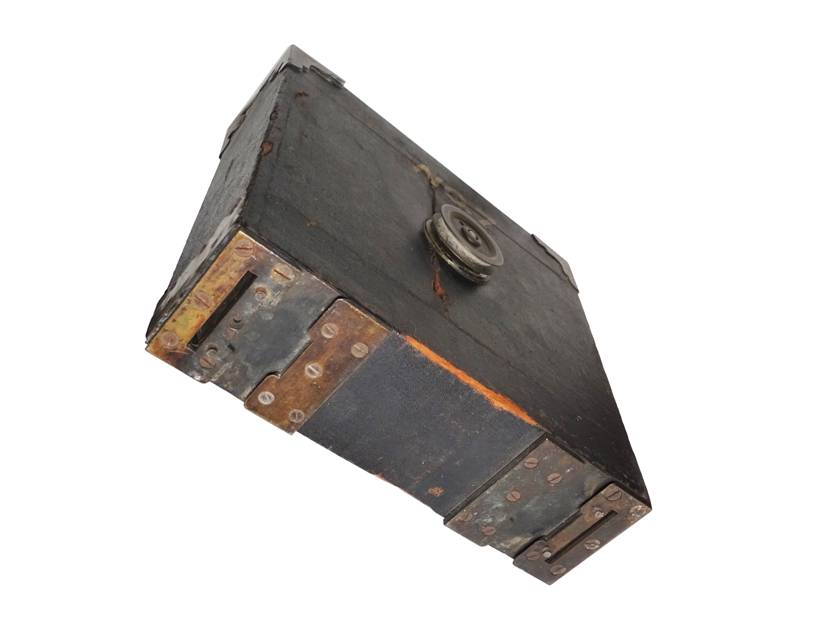

Compared against the Pathe Professional 35mm, the Lubin's film magazines are rather heavy at about 2-1/2 pounds unloaded. They secure to the body using Lubin's patented mounting system (Patent No. 1,087,996), and because film slots are located at each end of the magazine's base, any magazine can be used in the feed or take-up position:






                           Image source: Google Patents                                                         Image source: Google Patents

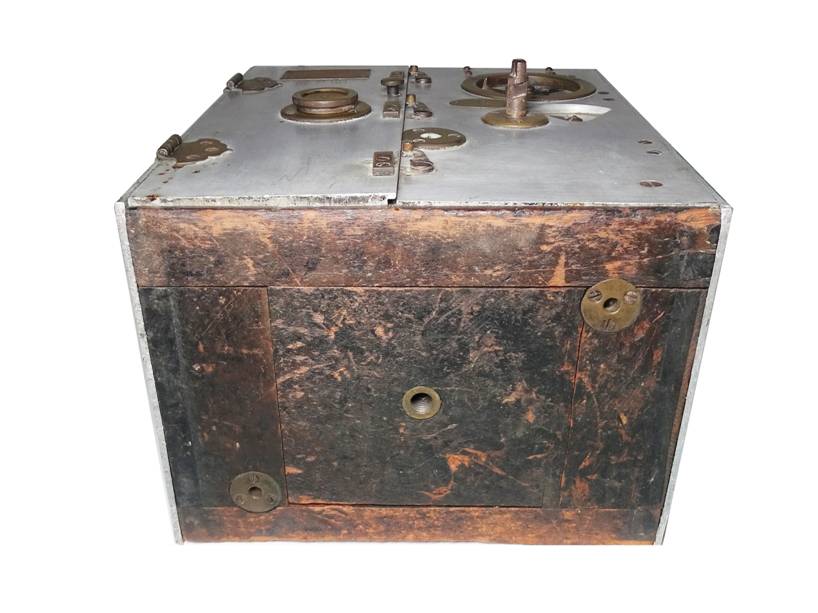

It's unknown as to when this model of the Lubin 35mm was introduced, or for how long the earlier wooden-bodied version was produced.

Very few examples of any of Lubin's cameras survive today, and they are considered very rare, most especially the very earliest wooden model.
